| Application |

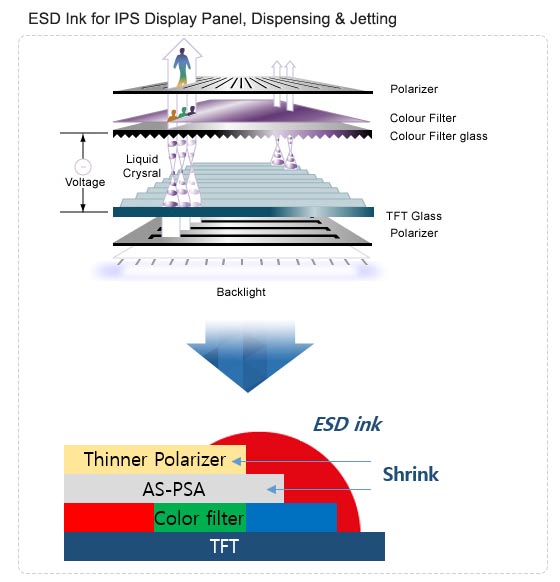

Normal IPS (Dispenser) |
Narrow Bezel IPS panel (Jet Valve) |
| Binder Type |
Urethane |
Urethane |
| Conductive Powder Type |
Silver |
Silver |
| Conductive Powder content (wt%) |
45.0 ~ 60.0 |
40.0 ~ 60.0 |
| Conductive Powder content (wt%) |
45.0 ~ 60.0 |
40.0 ~ 60.0 |
| Viscosity (cPs) |
5,500 ± 10% |
3,000 ± 10% |
| Thixotropic Index |
3.0 ± 10% |
1.5 ± 10% |
| Specific Resistance
(mΩ/□)
|
60℃/30min |
120 |
4,000 |
| 120℃/20min |
90 |
3,000 |
| Adhesion |
PET |
5B |
5B |
| Surface Drying Time @ RT |
Max. 15 min. |
Max. 30 min. |
| Complete Drying Time @ 60℃ |
Max. 60 min. |
Max. 60 min. |

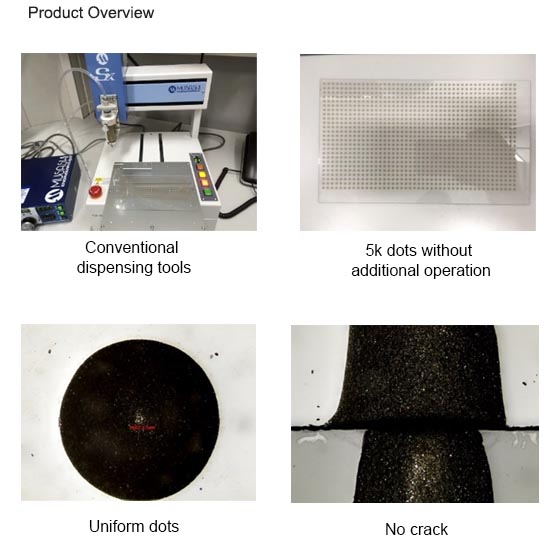

| Dotting continuity |
> 10,000 |
> 3,000 |
