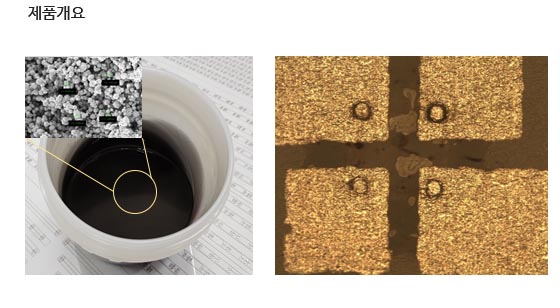

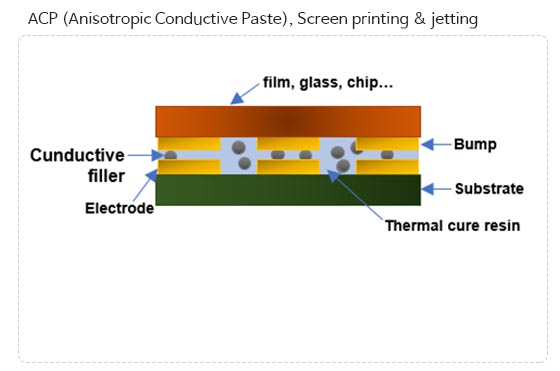

이방전도성페이스트
물성표
| Items | ACP-001 | ACP-002 |
|---|---|---|
| Binder Type | Urethane acrylate | Epoxy |
| Solid Contents (wt.%) | 5 ~ 12, Ni | 20 ~ 30, Ni |
| Viscosity @ 22℃ | 30,000 ~ 45,000 | 80,000 ~ 100,000 |
| Thixotropic Index | 1.5 ~ 2.0 | 1.5 ~ 2.0 |
| Pre-curing Conditions | 100 ℃, 3min | No needed |
| Curing Conditions | 150 ℃, 10min | No needed |
| Pressure | 3.0 ~ 4.0 ㎫ | 0.8 ~ 1.0 ㎫ |
| Sheet Resistance | 4~5 x 1012 mΩ/□ | 4~5 x 1012 mΩ/□ |
